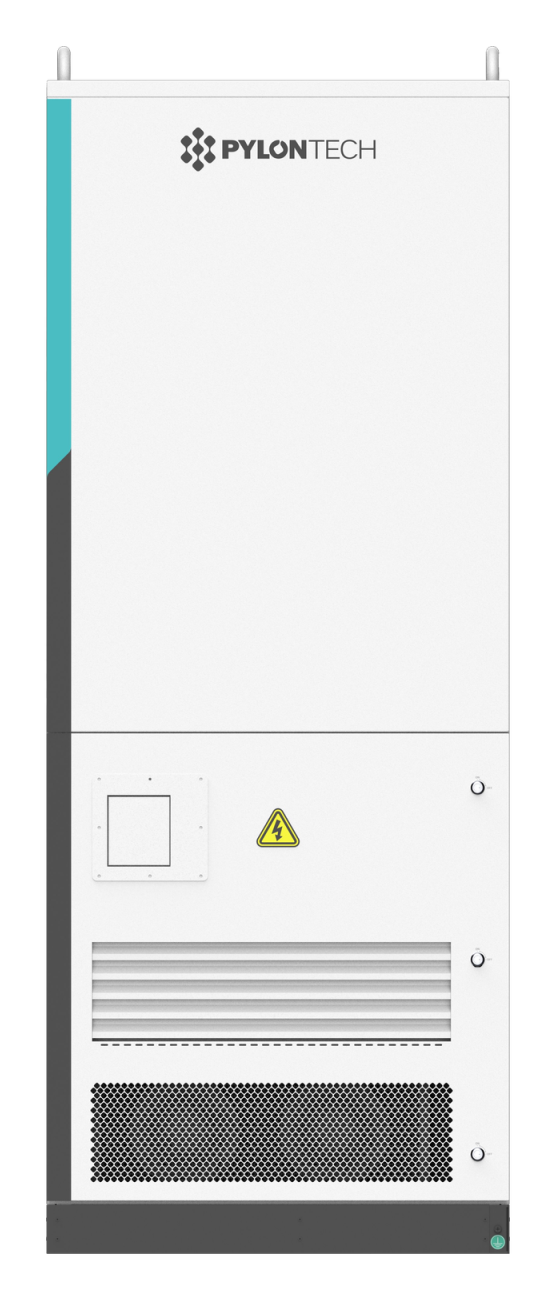

Pylontech M7-L261-OMNNI-125kW/261kWh(100kW/261kWh; liquid cooled)

Manufacturer PYLONTECH
Manufacturer Item No. L261OMNNIM7
Item No. L260OMNNIM7
EAN L260OMNNIM7
Technical details
Corrosion protection C3
Weight 2900 kg
Depth 1300 mm
Height 2480 mm
Width 950 mm
Baterijas šūnu tips LFP
Degree of protection (IP) IP 55
Cooling method Liquid
Ambient temperature -25..50 °C
Max. depth of discharge 98 %
Nominal battery capacity 260 kWh
AC - nominal output power 125000 W


Downloads

Datasheets (1)
PDF icon EN-SD-251105-L260-OMNI-Specification.pdf
Instructions (2)
PDF icon L260-OMNI User Manual V2.4 20251027.pdf PDF icon Pylontech Cloud User Manual_EN_V1.10_20251121.pdf
Certificates (4)
PDF icon EN 50549_1&2_INPPCS-125-0.4-W-14-A2-OS.pdf PDF icon HM7A200L-UL9540A-CN244Y4S 001_TR.pdf PDF icon Optim US-B1-M7-A-CE EMC-AE 50648000 0001_Certificate.pdf PDF icon PowerCube-20H-M7A200-CE EMC-AE 50649677 0001_Certificate.pdf

Manufacturer information

Pylontech, formally known as Pylon Technologies Co., Ltd., is a leading global provider of battery energy storage systems (BESS). The company was founded in 2009 in Shanghai, China, and has become a major player in the renewable energy sector.

Product description

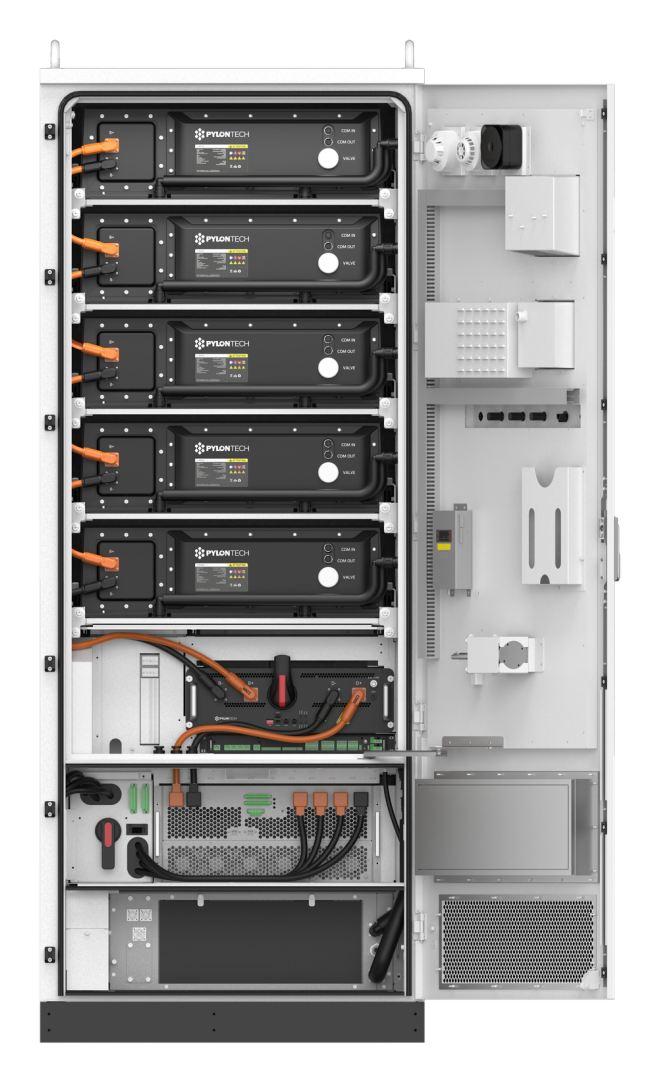

The Pylontech OPTIM US L260-OMNI-M7 is an all-in-one commercial and industrial BESS with integrated PCS (M7-1000V-125kW/260kWh), for utility-scale storage, ancillary services, electricity arbitrage, demand response and backup. A single cabinet delivers 125 kW / 260 kWh, scaling to 750 kW / 1560 kWh with up to 6 units in parallel. It uses LFP (Li-ion) cells with 98% depth of discharge, a >8500-cycle life and >95% round-trip efficiency (98% CEC), running at a 0.5C continuous rate with 400 Vac three-phase output and 110% overload. The liquid-cooled cabinet includes integrated aerosol fire suppression, an IP55 rating and C3 anti-corrosion for a -25 to +50°C operating range, with Ethernet (Modbus TCP) communication.
