WHES PC-G2 IA-250kW500kWh-DA10

Manufacturer WHES
Manufacturer Item No. IA-250KW500KWH-DA10
Item No. IA-250-509-DA10
EAN IA-250KW500KWH-DA10

Reveal Price ?

Please log in or register to view our exclusive B2B pricing and availability.

Log in Register
Technical details
Depth 1500 mm
Height 2100 mm
Width 2940 mm
Ambient temperature -20 .. 55 °C
Nominal battery capacity 509 kWh
Battery cell type LFP
Cooling method Liquid / Air
AC - nominal output power 250000 W
Max. depth of discharge 100 %
Weight 5200 kg
Corrosion protection C5


Downloads

Datasheets (1)
DS_IA-250kW500kWh-DA10.pdf
Instructions (2)
PC-G2_UM_Battery cabinet.pdf Power Core AC Cabinet AC-250kW-2B10 User Manual V1.0.pdf
Certificates (9)
2504B2031SHA-V1 (battery).pdf 2505B0515SHA-V1.pdf 2505B0516SHA-V1 (PCS).pdf 2505B0516SHA-V1.pdf 6226789.01-COC(2).pdf EN 62477-1.pdf EU Declaration of conformity - Power Core G2 250kW.pdf UN38.3 Test Report.pdf UN38.3 Test Summary.pdf

Manufacturer information

WHES is a leading provider of integrated battery energy storage systems. They offer solutions for various applications, from residential to utility-scale, focusing on renewable energy integration, grid stability, and cost savings. WHES systems can store energy from multiple sources, including solar panels and the grid, and release it when needed for backup power, peak shaving, or to reduce reliance on the grid.

Product description

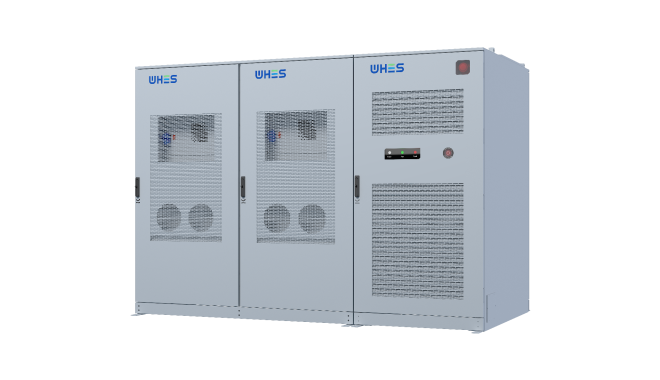

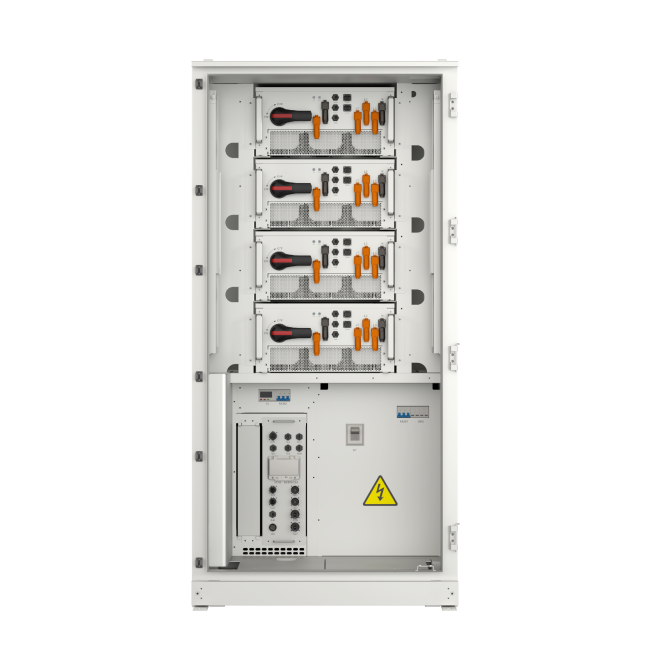

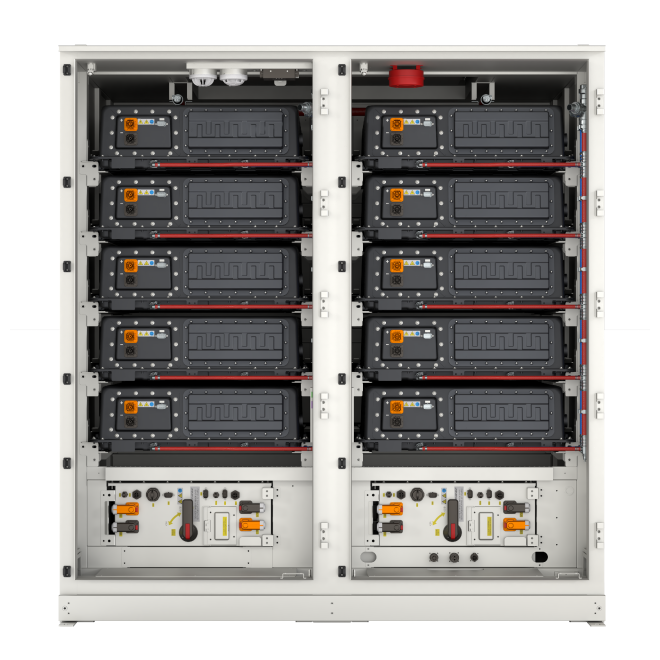

The WHES PC-G2 (IA-250kW/500kWh) is a C&I energy storage system pairing a 250 kW PCS with a 509 kWh LFP battery cabinet (CATL 306Ah cells, 1P×52S) for commercial and industrial applications — peak shaving, dynamic expansion, and fast frequency response. It uses a modular AC/DC design with 2/4/6/8-hour configurations and scales to 6 units in parallel (1.5 MW / 3 MWh). On the AC side it delivers 250 kW at 400V, 3/N/PE, with THDi <3% and full ±1 power factor; the battery runs at 832V nominal (728–936V) with liquid cooling and smart air cooling on the PCS. Safety is layered: 3-tier fire protection (smoke/heat/gas detection, aerosol and sprinkler suppression, explosion venting), rated IP67 battery pack / IP55 cabinet / IP65 PCS, with C5 corrosion class and UL9540A + VDE 4110 certification. Floor-standing, −20 to +55 °C, under 65 dB, with RS485/CAN/Ethernet communication.
