Product information

Documents to download
PDF icon Data Sheet
PDF icon WHES_Installation_Manual_PowerCore_100kW_233kWh_EN_V2.1.pdf
Certificates
EN50549-2 (1).pdf WHES_Certificate_EN50549_1_50-233B_100-233B.pdf WHES_Certificate_EN61000_100-233B.pdf WHES_Certificate_IEC61727_IEC62116_Energy_Storage_Converter.pdf WHES_Certificate_IEC62619_100-233B.pdf WHES_Certificate_IEC62933-5-2_50-233B_100-233B.pdf WHES_Certificate_VDE4105_VDE0124_Energy_Storage_Converter.pdf WHES_Declaration_CE_50-233B_100-233B.pdf WHES_MSDS_100-233B.pdf WHES_UN38.3_Test_Report_100-233B.pdf WHES_UN38.3_Test_Summary_100-233B.pdf

Manufacturer information

WHES (Jiangsu Weiheng Intelligent Technology Co., Ltd.) designs all-in-one C&I energy-storage systems. The PowerCore platform uses CATL 280 Ah LFP cells with liquid cooling (cell-to-cell ΔT < 2 °C), < 1-day installation, and a 15-year design life (brochure note: > 80 % SOH after 10 years). Certifications include EN 50549-1, VDE-AR-N 4105, UL9540A, UN38.3, among others.



WHES is a leading provider of integrated battery energy storage systems. They offer solutions for various applications, from residential to utility-scale, focusing on renewable energy integration, grid stability, and cost savings. WHES systems can store energy from multiple sources, including solar panels and the grid, and release it when needed for backup power, peak shaving, or to reduce reliance on the grid.

Product description

Economical

  • • Highly integrated ESS for easy transportation and O&M.
  • • The integrated design allows the site to be quickly set up and used.

Liquid cooling

  • • The temperature deviance of battery cells in the whole system is within 2°C, due to intelligent liquid cooling system.
  • • It can expand the life time of the battery cells up to 20%.

Safe

  • ​• The system has four levels management structure which can accurately provide short circuit protection, over current protection, over voltage protection, under voltage protection, over temperature protection, etc.

Applications

  • • Shopping Mall
  • ​• Farm
  • ​• Factory
  • ​• Community

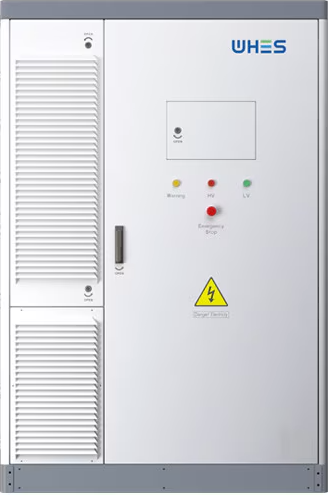

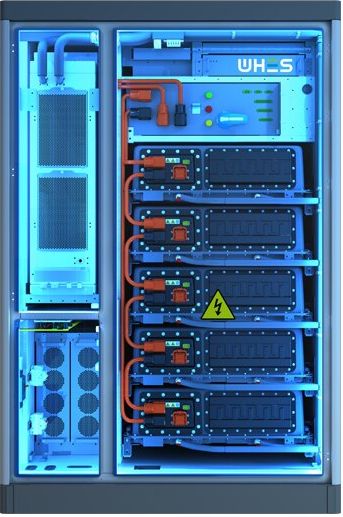

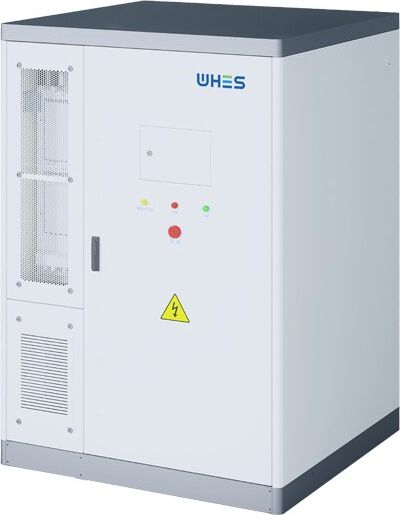

    The WHES PowerCore C&I All-in-One ESS 100 kW / 233 kWh is an outdoor cabinet with an integrated 100 kW PCS (400 V, 3W+PE, 50/60 Hz, PF −1…+1, THDi < 3%) and a 233 kWh LFP battery pack (CATL 280 Ah). It features IP55, an operating range of −20 to +55 °C (derating above 45 °C), a DC window of 728–936 V (nominal 832 V), typical noise < 75 dB, dimensions 1400×1350×2100 mm, and weight ~ 2700 kg; batteries are liquid-cooled and the PCS is air-cooled. Communications: Modbus TCP/IP; systems can run in parallel for larger setups. Use cases include self-consumption, peak shaving, arbitrage, and backup; the brochure highlights < 1-day installation.
