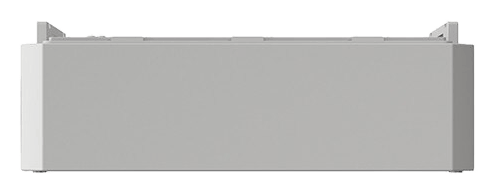

Fronius Reserva Pro (HV-Battery / Stackable)

Manufacturer FRONIUS
Manufacturer Item No. 4,240,390
Item No. 4240390
EAN 4,240,390
Quantity in ITF package 6 PCS
Variations
  • Fronius Reserva Pro (HV-Battery / Stackable)
  • Fronius Reserva Pro (BMS & Base)

Reveal Price ?

Please log in or register to view our exclusive B2B pricing and availability.

Log in Register
Technical details
Battery charge temperature -20..55 °C
Degree of protection (IP) IP 65
Battery discharge temperature -20..55 °C
Height 160 mm
Width 570 mm
Depth 440 mm
Weight 36 kg
Nominal battery capacity 3,98 kWh
Suitable for outdoor installation Yes


Downloads

Datasheets (2)
SE_DS_Fronius_Reserva_Pro_EN.pdf SE_SDS_Reserva_Pro_Module_UK_EN-English.pdf
Instructions (1)
Operating instructions_Fronius Reserva Pro 12.0 - 32.0 kWh.pdf
Certificates (6)
SE_Certificates_Conformity_IEC_62040_Fronius_Reserva_Pro_EN-English.pdf SE_Certificates_Conformity_IEC_62477-1_Fronius_Reserva_Pro_EN-English.pdf SE_Certificates_Conformity_IEC_62619_Fronius_Reserva_Pro_EN-English.pdf SE_Certificates_Conformity_VDE-AR-N_2510-50_Fronius_Reserva_Pro_MULTI.pdf SE_Manufacturers_Declaration_Confirmation_UN_383_Fronius_Reserva_Pro_EN-English.pdf SE_Manufacturers_Declaration_Safety_Data_Sheet_SDS_Fronius_Reserva_Pro_EN-English.pdf

Manufacturer information

Fronius is a well-established Austrian technology company known for its innovation and high-quality products. It operates in three core business sectors: Solar Energy, where they are a leading manufacturer of residential and commercial solar inverters; Perfect Welding, a division that develops advanced welding systems and solutions; and Perfect Charging, which specializes in intelligent battery charging technology for industrial and automotive applications. The company is committed to sustainable solutions and has a strong global presence, with its brand being synonymous with reliability and technological advancement in each of its markets.

Product description

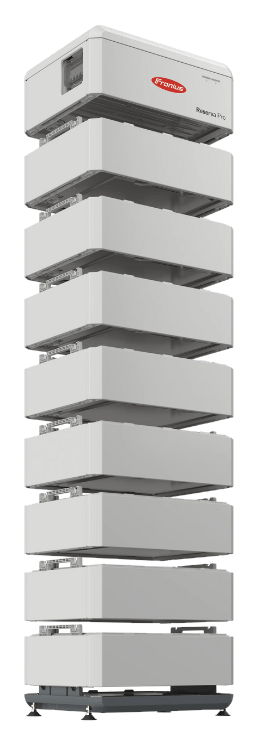

The Fronius Reserva Pro is a DC-coupled high-voltage LFP battery for larger home and small commercial PV storage, paired with a Fronius Primo GEN24 Plus SC, Symo GEN24 Plus SC or Verto Plus hybrid inverter (the 12.0–20.0 kWh sizes work with all three; the 24.0, 28.0 and 32.0 kWh sizes require Symo GEN24 Plus or Verto Plus). It scales in 3.98 kWh module steps across six sizes — 12.0, 16.0, 20.0, 24.0, 28.0 and 32.0 kWh (3 to 8 modules) — and up to four towers run in parallel for as much as 128 kWh, bringing small commercial systems onto the same platform. A 50 A maximum output current (limited by the inverter) gives Reserva Pro noticeably more DC power than the standard Reserva, so larger Verto Plus systems can charge and discharge harder. DC coupling stores solar energy with minimal losses; monitoring is via Solar.web, and with Solar.web Premium the Energy Cost Assistant optimises charging against dynamic tariffs. Rated IP65, safety class II, −20 °C to +50 °C, up to 2000 m, communicating over Modbus (RS485). 10-year warranty to 80% SOH.
