GoodWe ESA Athena S3 GW3.0-BAT-LVD-G10 (Low-Voltage Battery)

Manufacturer GoodWe
Item No. BBA3000-01-00P
EAN BBA3000-01-00P
Variations
  • GoodWe ESA Athena S3 GW3.0-BAT-LVD-G10 (Low-Voltage Battery)
  • GoodWe ESA Athena S3 GW3K-EMA-G10 (ESS Hybrid Inverter)/Plug & Play (Type C socket)

Reveal Price ?

Please log in or register to view our exclusive B2B pricing and availability.

Log in Register
Technical details
Battery cell type LFP
Battery connection Low voltage
Degree of protection (IP) IP 65
Heating film Yes
Sound level (in operation) <20 dB
Operating Temperature -20..55 °C
Height 308,6 mm
Width 480 mm
Depth 260 mm
Weight <29 kg
Suitable for outdoor installation Yes
Nominal battery capacity 3 kWh
Usable battery capacity (kWh) 2,75 kWh


Downloads

Datasheets (1)
GW_ESA-Athena-S3_Datasheet_EMEA-EN.pdf
Instructions (2)
GW_ESA-Athena-S3_Quick-Installation-Guide-POLY.pdf GW_ESA-Athena-S3_User-Manual-EN.pdf
Certificates (4)
GW_ESA Athena S3-BAT_Certificate-IEC 62619.pdf GW_ESA Athena S3-BAT_Certificate-IEC 63056.pdf GW_ESA Athena S3_Certificate-EN 18031.pdf GW_ESA Athena S3_Certificate-G98.pdf

Manufacturer information

GoodWe is a prominent Chinese manufacturer of solar inverters and energy storage solutions. Founded in 2010, the company has quickly grown to become a major player in the global solar energy market.

BayWa r.e. Solar Systems SIA is recognized as an Authorized GoodWe Distributor for Latvia, Lithuania & Estonia
CERTIFICATE

Product description

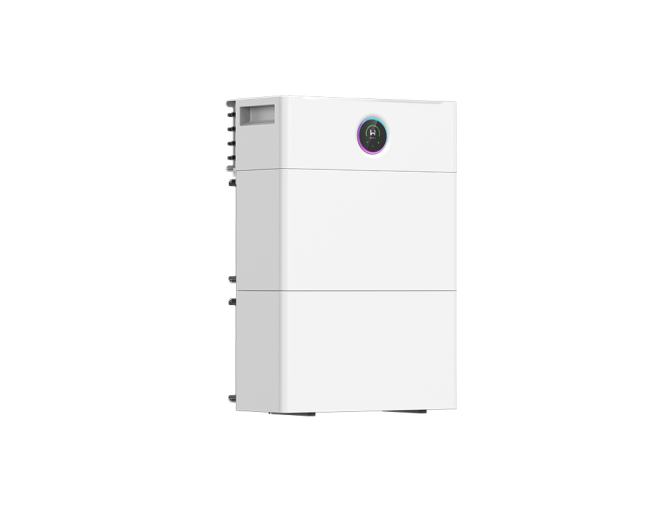

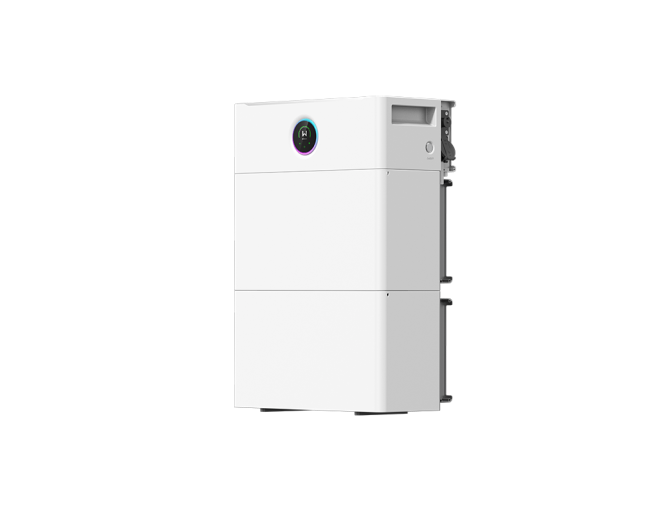

The GoodWe GW3.0-BAT-LVD-G10 is the 3 kWh LFP (LiFePO4) battery module for the ESA Athena S3 micro storage system, giving 2.75 kWh usable per module. Its blind-mate, stackable design is the heart of the system's plug-and-play appeal — modules click together with no cabling, and 1 to 5 stack for 3 to 15 kWh, with Mix & Match support for combining new and old modules as needs or regulations change. Touch-safe by design, it carries built-in aerosol fire extinguishing and a heating film that extends the charging range to −20 °C to +55 °C (discharge −20 °C to +55 °C), so it stays available through Baltic winters. Rated IP65, protective class II, ≤20 dB, 4–100% RH, up to 3000 m, communicating over CAN. At ≤29 kg it's a genuine one-person lift. Compliant with IEC60673, IEC62619, IEC63056, EU Regulation 2023/1542 (articles 10 & 12), IEC 61000-6 EMC and UN38.3.
