PYLONTECH
Last volume
Compatible with

Pylontech Force H3 (HV-Battery / Stackable)

Manufacturer PYLONTECH
Manufacturer Item No. 11FH10050ZA-00001
Item No. FH10050-001
EAN 4262442220194
Quantity in ITF package 15 PCS
Variations
  • Pylontech Force H3 (HV-Battery / Stackable)

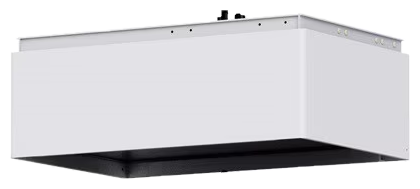

  • Pylontech Force H3 (BMS & base)
  • Pylontech Force H3 (HV-Battery / Stackable)
Technical details
Battery discharge temperature -10..55 °C
Battery charge temperature -10..55 °C
Degree of protection (IP) IP 65
Height 360 mm
Width 540 mm
Depth 350 mm
Weight 53 kg
Usable battery capacity (kWh) 5,12 kWh
Nominal battery capacity 5,12 kWh


Downloads

Datasheets (1)
PDF icon EN-SD-251020-Force-H3- ESS Spec-Pylontech.pdf
Instructions (2)
PDF icon RESS-Installation Manual-Force H3 (V1.1) 5PMPA08-00250 EU.pdf PDF icon RESS-Installation Manual-Force H3 Wi-Fi Portal Introduction （V1.0）5PMPA08-00229.pdf
Certificates (5)
PDF icon ANSI_CAN_UL 9540A2019_Test_Report_Force_H3.pdf PDF icon CE_Certificate_Force_H3.pdf PDF icon H3 14067+CFB IND_EN.pdf PDF icon N8A0907620078_C_EN62040.pdf PDF icon T8A0907620076_C_EN61000.pdf

Manufacturer information

Pylontech, formally known as Pylon Technologies Co., Ltd., is a leading global provider of battery energy storage systems (BESS). The company was founded in 2009 in Shanghai, China, and has become a major player in the renewable energy sector.

Product description

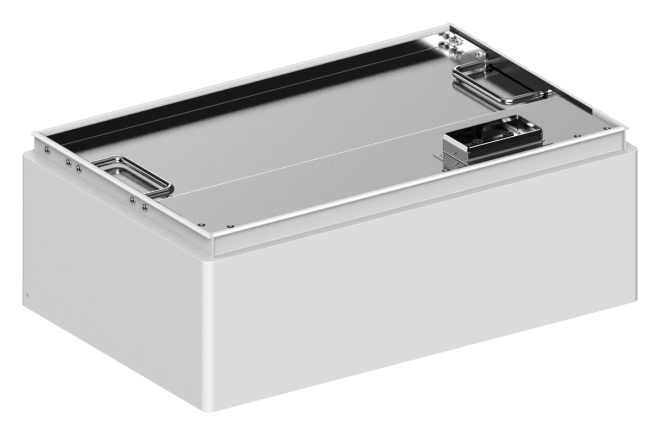

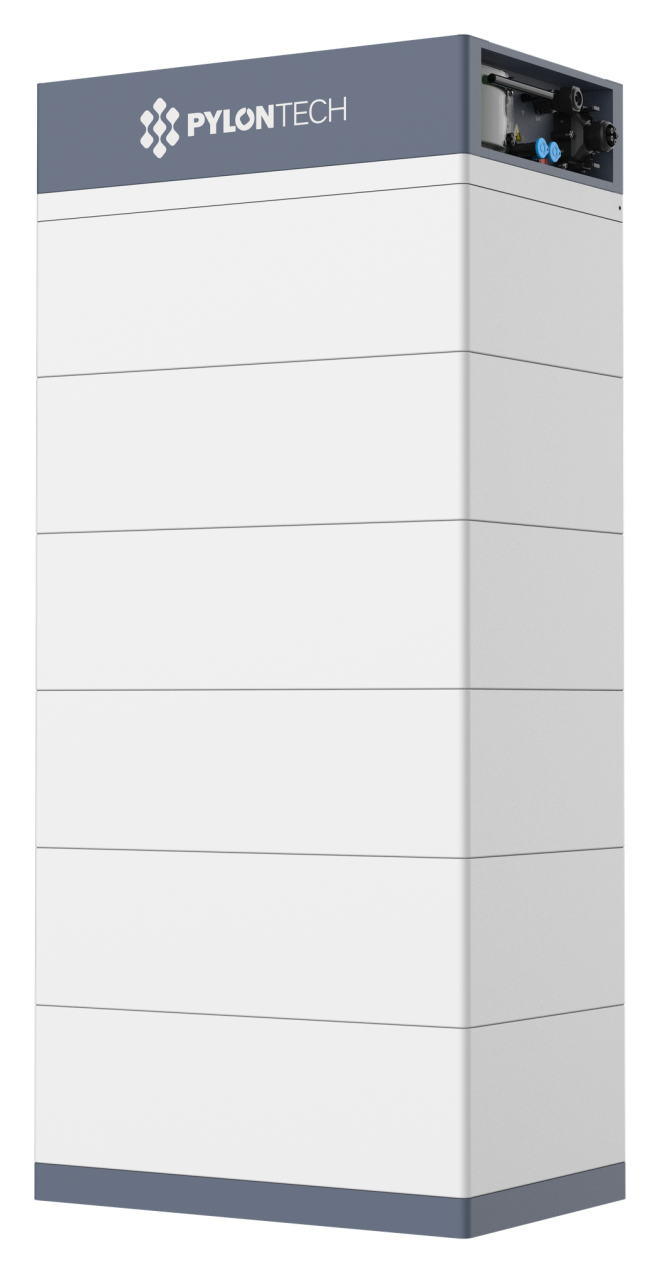

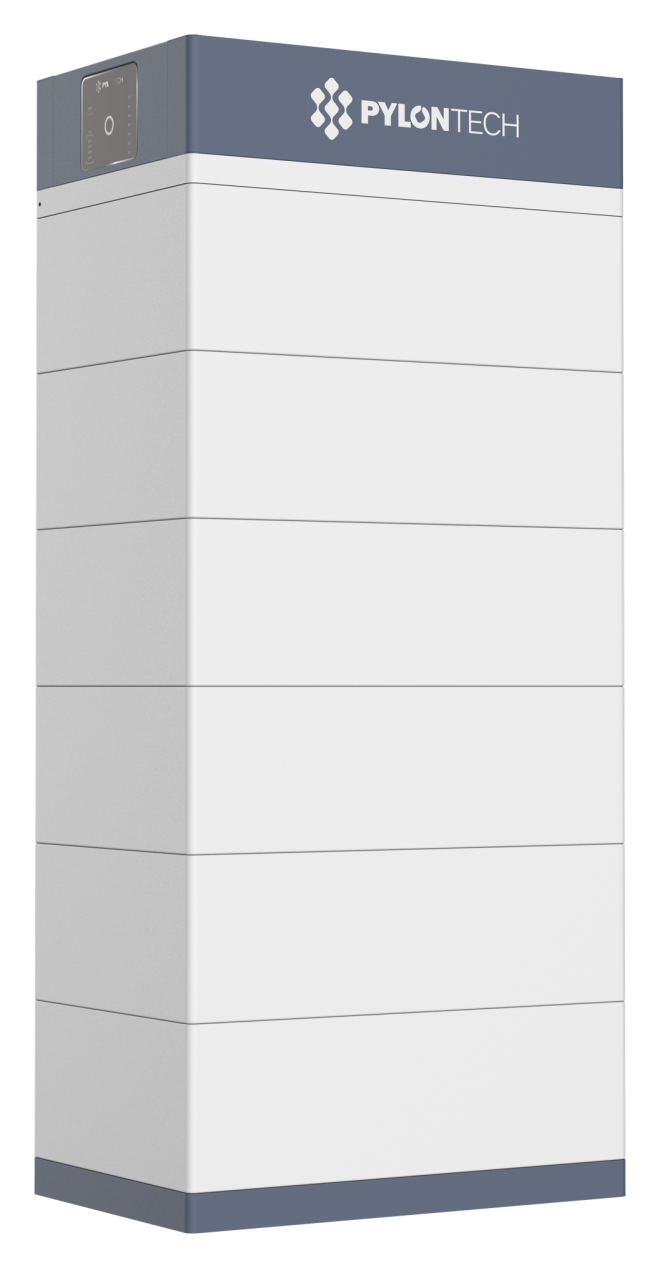

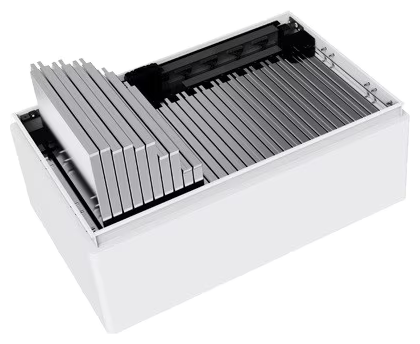

The Pylontech Force-H3 is a high-voltage stackable LiFePO₄ residential battery system, scalable from 10.24 to 35.84 kWh by stacking 5.12 kWh FH10050 modules (2–7 modules per tower). It runs at 204.8–716.8 V system voltage with a 95% depth of discharge, 50 A normal charge/discharge current, >8000-cycle life and a 15+ year design life. It supports up to 6 groups in parallel for larger capacity, communicates over Modbus RTU/CAN, and carries an IP65 enclosure rated for −10 to +55 °C operation. It is certified to IEC 62040-1, IEC 62619, IEC 63056, UL1973, UL9540A, UN38.3 and VDE-AR-E 2510-50.
