SOLIS
New
Compatible with

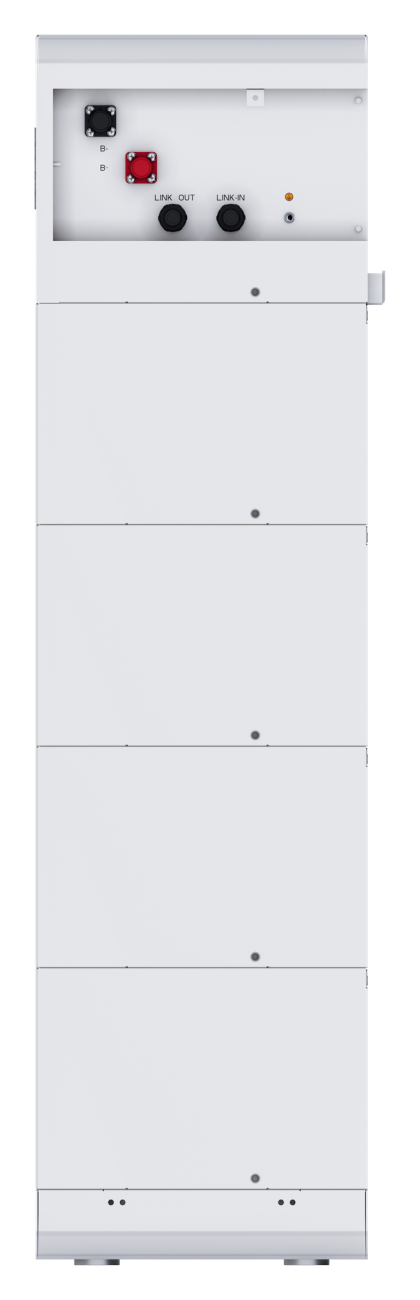

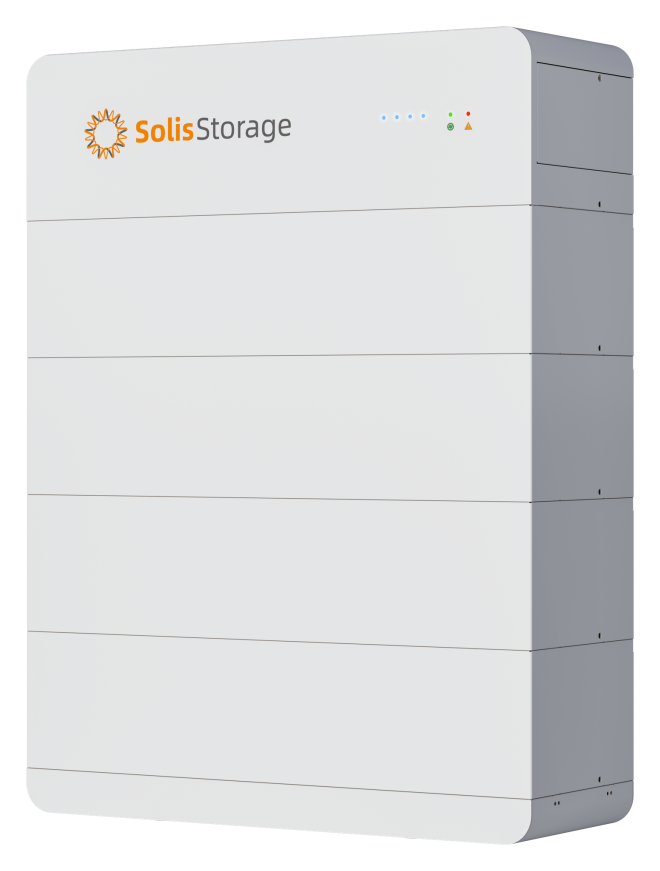

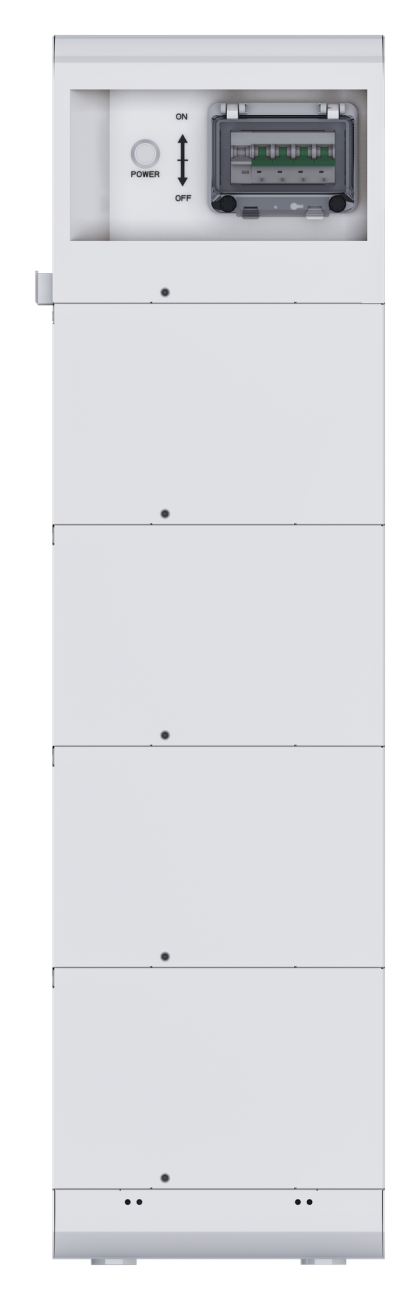

Solis FlexHome-BAT5kWh-H (HV-battery / stackable)

Manufacturer Solis
Item No. 2607070001
EAN 2607070001
Variations
  • Solis FlexHome-BAT5kWh-H (HV-battery / stackable)
  • Solis FlexHome-CB50A-H (HV control box)
Technical details
Degree of protection (IP) IP 66
With heater Yes
Battery discharge temperature -20..55 °C
Battery charge temperature -20..55 °C
Height 189 mm
Width 800 mm
Depth 285 mm
Weight 50 kg
Nominal battery capacity 5 kWh
Usable battery capacity (kWh) 5 kWh


Downloads

Datasheets (1)
PDF icon FlexHome-(15-40)kWh-Global-Flyer-V1.2_20260528140252.pdf
Instructions (1)
PDF icon FlexHome-(15-40)kWh-H User Manuall(20260526)_20260601110159.pdf
Certificates (2)
PDF icon Solis_certificate_IEC 62619&IEC 53056_FlexHome-(13.99-40)kWh-H_Safety_V01_20260601110220.pdf PDF icon Solis_certificate_VDE 2510&PPP 51094A_FlexHome-(13.99-40)kWh-H_GER_V01_20260617132742.pdf

Manufacturer information

Solis is a major brand for solar inverters, which are crucial components of solar power systems. They produce a wide range of inverters for residential, commercial, and utility-scale applications, including single-phase, three-phase, and hybrid inverters. They also offer accessories like data logging sticks and monitoring solutions.

Product description

The Solis FlexHome Stackable Battery is a high-voltage LiFePO₄ home storage system scalable from 15 to 40 kWh in a single stack, aimed at residential and small commercial self-consumption and backup. It uses 100 Ah cells across a 134–461 V operating window (rising with capacity), with a 50 A max charge/discharge current, ≥6000-cycle life and full 100% depth of discharge. It is stackable up to 4 units in parallel (max 160 kWh), carries CAN/RS485 communication, a comprehensive protection set (over/under-voltage, overcurrent, over/under-temperature, DC breaker, DC overcurrent fuses, aerogel thermal insulation, fire protection, explosion-release valves), and an IP66 enclosure with C5M anti-corrosion rating for outdoor floor-standing or wall-mounted install. It pairs with Solis S6-EH3P hybrid inverters.
