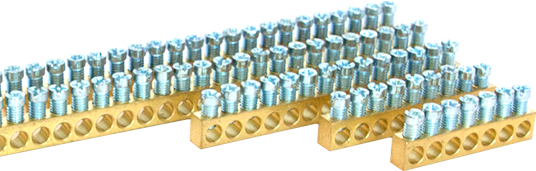

BB14 Brass bar 14x16mm2
Manufacturer
MOREK
Item No.
MAD0014E21
EAN
4744397018113
Quantity in ITF package
50 PCS
Please log in to see price or purchase this item
Technical details
Construction type
Surface mounting modular
Model
Only clamp
Insulator
No
Height
9 mm
Width
6.5 mm
Length
94 mm
Number of connections round conductor total
14
Number of connections round conductor 8 mm
0
Number of connections round conductor 10 mm
0
Number of connections round conductor 8-10 mm
0
Number of connections flat conductor 30 mm
0
Number of connections flat conductor 40 mm
0
Number of connections conductor to 6 mm² fixed
0
Number of connections conductor to 16 mm² fixed
14
Number of connections conductor to 25 mm² fixed
0
Number of connections conductor to 95 mm² fixed
0
Material of contact rail
Brass
Surface of the contact rail
Untreated
Material of clamp
Steel
Surface of the clamp
Galvanic/electrolytic zinc plated
Explosion-tested version
No
