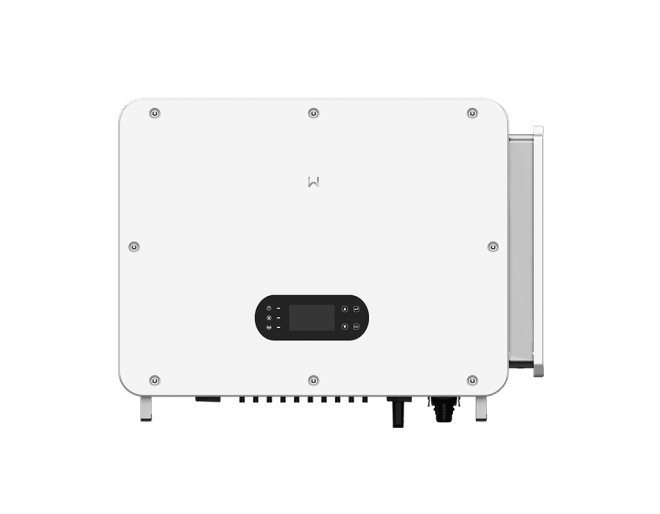

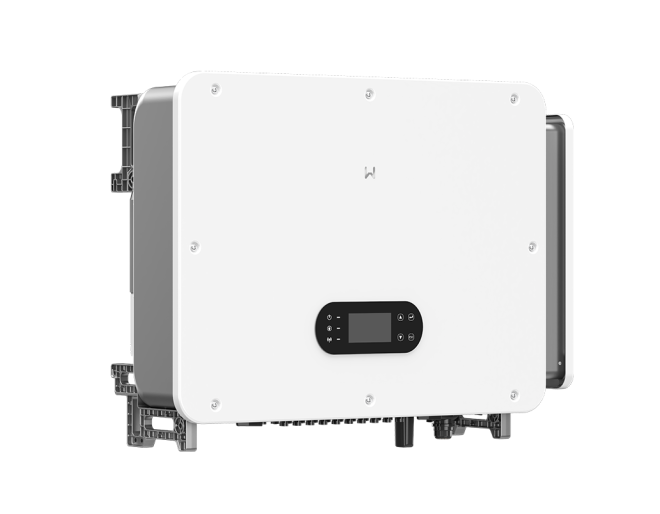

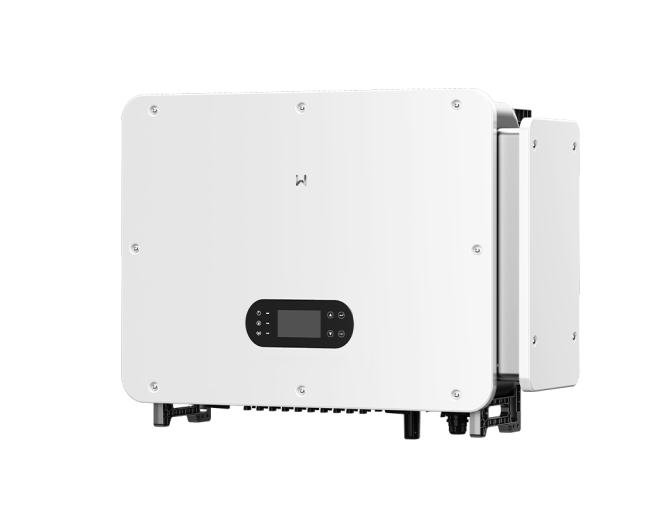

GoodWe GW125K-ETR-G10 (3-Phase Hybrid / HV Battery)

Manufacturer GoodWe
Item No. NBW125K-10-00P
EAN NBW125K-10-00P
Technical details
Sound level (in operation) 60 dB
Ambient temperature -35..60 °C
Number of phases 3
Battery connection High voltage
Hybridinverter Yes
DC - max input power 250000 W
AC - nominal output power 125000 W
Weight 98 kg
Height 758 mm
Width 995 mm
Depth 358 mm
Number MPP tracker 10
Degree of protection (IP) IP 66
Emergency power compatible Yes


Downloads

Datasheets (1)
PDF icon GW_ETR_Datasheet_EMEA-EN.pdf
Instructions (1)
PDF icon GW_Commercial & Industrial Smart Inverter Solutions_User Manual-ETR-EN.pdf
Certificates (6)
PDF icon GW_ETR_Certificate-CE LVD.pdf PDF icon GW_ETR_Certificate-EN 50549-1_EN 50549-10.pdf PDF icon GW_ETR_Certificate-EN 50549-2_EN 50549-10.pdf PDF icon GW_ETR_Certificate-IEC 61683_IEC 62891_EN 50530.pdf PDF icon GW_ETR_Certificate-IEC 61727_IEC 62116.pdf PDF icon GW_ETR_EU Declaration of Conformity_POLY.pdf

Manufacturer information

GoodWe is a prominent Chinese manufacturer of solar inverters and energy storage solutions. Founded in 2010, the company has quickly grown to become a major player in the global solar energy market.

BayWa r.e. Solar Systems SIA is recognized as an Authorized GoodWe Distributor for Latvia, Lithuania & Estonia
CERTIFICATE

Product description

The GoodWe GW125K-ETR-G10 is a three-phase high-voltage battery-ready hybrid inverter rated 125 kW, for commercial and industrial PV and storage, supplied with a GM330 Smart Meter and WiFi/LAN communication kit in the box. Its battery-ready architecture lets a site start as a PV inverter today and add storage later without replacing the inverter — an LFP battery port at 750 V (700–1000 V) supports up to 137.5 kW charge/discharge (180 A), paired with the GoodWe BAT-C 261 kWh system for self-consumption, peak shaving, backup and microgrid duty. The PV side is built for oversizing: 10 MPPTs with up to 42 A per string and 2 strings per MPPT, a 160–1000 V MPPT range, 1100 V max input and up to 250 kW of array, at 99.9% MPPT efficiency. Grid output is 125 kW / 125 kVA (137.5 kVA max) at 220/380, 230/400 or 240/415 V 3L/N/PE, power factor adjustable 0.8 leading to 0.8 lagging, THDi <3%. Backup (via STS Box or Cabinet) switches in <10 ms and sustains 150% for 10 s, 120% for 60 s and 110% continuous off-grid for motor and pump starting. Max efficiency 98.1% (EU 97.7%, 98.2% battery-to-AC). Rated IP66 for outdoor install, −35 °C to +60 °C, intelligent air cooling, <60 dB. Protection is comprehensive and integrated — AFCI, integrated DC switch, Type I+II DC and Type II AC surge protection, PV insulation and residual-current monitoring, reverse-polarity, anti-islanding, AC over-current/short-circuit/over-voltage and remote shutdown (rapid shutdown and EPO optional). Monitoring over RS485, WiFi, LAN and Bluetooth (4G optional) using Modbus TCP (SunSpec compatible); CAN to the BMS. Wall-mounted, 995 × 758 × 358 mm, 98 kg.
