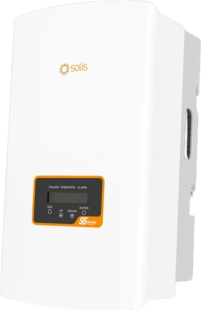

Solis S5 8kW (3-Phase / Grid-tied)

Manufacturer Solis
Item No. S5-GR3P8K
EAN S5-GR3P8K
Quantity in ITF package 6 PCS
Variations
  • Solis S5 8kW (3-Phase / Grid-tied)
  • Solis S5 20kW (3-Phase / Grid-tied)
Technical details
Hybridinverter No
Number of phases 3
Operating Temperature -25..60 °C
Battery connection No
DC - max input power 12000 W
AC - nominal output power 8000 W
Weight 17.8 kg
Height 563 mm
Width 310 mm
Depth 219 mm
Number MPP tracker 2
Degree of protection (IP) IP 66
Emergency power compatible No


Downloads

Datasheets (1)
PDF icon S5-GR3P(3-20)K-Global-Flyer-V3,8.pdf
Instructions (1)
PDF icon Solis_Manual_S5-GR3P(3-13)K_FN_EUR_V1,4(20240702).pdf
Certificates (4)
PDF icon CE_Solis-3P(3-20)K-4G(-LV,-AU,-BE)_S5-GR3P(3-20)K(-LV,-AU,-BE).pdf PDF icon Solis_certificate_IEC62109-1(2)_EN62109-1(-2)_S5-GR3P(3-20)K-4G(AU,LV,BE)_V01(TUV_Mark).pdf PDF icon Solis_certificate_IEC_61000-3-11_IEC_61000-3-12_IEC_61000-3-2_IEC_61000-3_Flicker_harmonic_V01.pdf PDF icon Solis_certificate_IEC_EN_61000-6-1(2,3,4)_EN_55011_CISPR11_3P(3-20)K_EMC_V01.pdf

Manufacturer information

Solis is a major brand for solar inverters, which are crucial components of solar power systems. They produce a wide range of inverters for residential, commercial, and utility-scale applications, including single-phase, three-phase, and hybrid inverters. They also offer accessories like data logging sticks and monitoring solutions.

Product description

The Solis S5-GR3P(3-20)K is a three-phase grid-tied string inverter for residential and commercial rooftop and ground-mount PV, available from 3 to 20 kW. It runs 2 MPPTs with 2–4 strings, accepts 16 A or 32 A input current (model-dependent) and a 1100 V max input, and supports a >150% DC/AC ratio for generous PV oversizing. Peak efficiency is up to 98.7% (98.3–98.6% on lower models, 97.7–98.1% EU). Protection is comprehensive and integrated: DC switch, surge protection, DC reverse-polarity, short-circuit, output overcurrent, anti-islanding, temperature protection and multi-peak scan. The transformerless design carries an IP66 enclosure for outdoor install, with natural cooling on smaller models and intelligent fan-cooling on larger ones.
