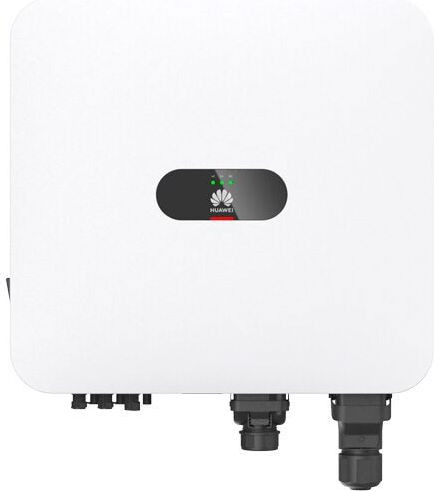

HUAWEI SUN2000-5K-MAP0 / Hybrid

Manufacturer HUAWEI
Item No. 01076943
EAN 01076943
Quantity in ITF package 16 PCS
Variations
  • HUAWEI SUN2000-5K-MAP0 / Hybrid
  • HUAWEI SUN2000-6K-MAP0 / Hybrid
  • HUAWEI SUN2000-8K-MAP0 / Hybrid
  • HUAWEI SUN2000-10K-MAP0 / Hybrid
  • HUAWEI SUN2000-12K-MAP0 / Hybrid
Technical details
Hybridinverter Yes
Number of phases 3
Battery connection High voltage
DC - max input power 9000 W
AC - nominal output power 5000 W
Weight 21 kg
Height 460 mm
Width 490 mm
Depth 130 mm
Number MPP tracker 2
Degree of protection (IP) IP66
Emergency power compatible Yes


Downloads

Datasheets (1)
PDF icon FusionSolar+SUN2000-5-12K-MAP0+Datasheet.pdf
Instructions (1)
PDF icon SUN2000-(5K-12K)-MAP0 Series User Manual.pdf
Certificates (3)
PDF icon Certificate of IEC-62116 & IEC-61727 for SUN2000-(5-12K)-MAP0 Inverter.pdf PDF icon Certificate of EN 50549-1 for SUN2000-(5-12K)-MAP0 Inverter (English).pdf PDF icon Certificate of IEC61683 for SUN2000-(5-12K)-MAP0 Inverter.pdf

Manufacturer information

Huawei - a strong brand, strong products and innovative solutions. This world-renowned manufacturer's product portfolio is flexible, versatile and powerful. With its inverter solutions, Huawei constantly proves its quality standards and the technological progress that the company has made.

The world's leading provider of information technology and telecommunications solutions has now been active in the solar inverter sector for over 8 years and is the only manufacturer to offer a standard unit for fault detection on the DC side.

Go to the website of huawei

Product description

The SUN2000-5/6/8/10/12K-MAP0 is Huawei's three-phase hybrid solar inverter (Smart Energy Controller) spanning 5 to 12 kW, built for residential and small commercial PV-plus-storage systems. Each model runs 2 MPPTs with one DC input each, a 1,100 V max input voltage and a 160–1,000 V operating range, reaching up to 98.6% max efficiency (98.2% European weighted). It is battery-ready for Huawei LUNA2000-5/10/15-S0 and 7/14/21-S1 packs over a 600–980 V DC interface, supports 100% three-phase asymmetric load, and carries integrated AFCI arc-fault protection, connector temperature detection on PV and battery terminals, insulation detection, residual current detection and Type II DC/AC surge protection, all in an IP66 enclosure with quiet ≤29 dB natural-convection cooling.
